Dab Tsi yog Submarine Roj Hmab Fender

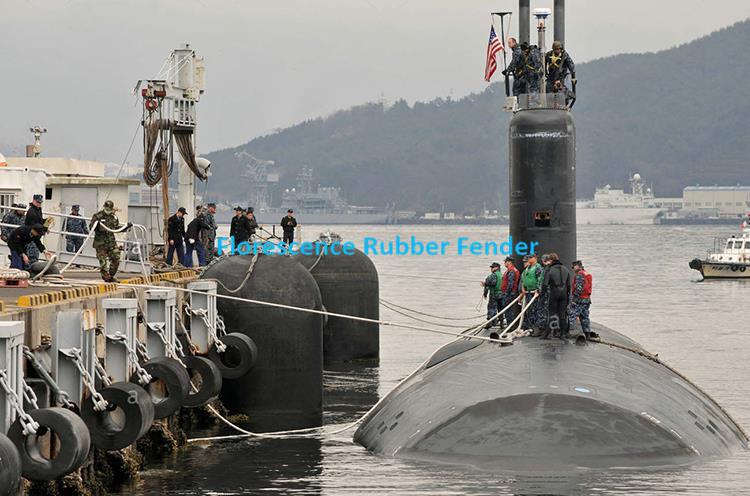

Lub submarine Fender yog qhov tshwj xeeb version ntawm Pneumatic Fender tsim rau submarines. Lawv tau ntim nrog dej thiab huab cua ces haum nrog tus neeg tiv thaiv kev sib tw uas tuav lawv sawv ntsug tawm tsam cov nkoj hauv nkoj, Hydropneumatic Fender yog tsim los ntsia cov kab ntsug ua rau lawv zoo tagnrho rau siv nrog submarines lossis cov hlab ntsha uas nws qhov cuam tshuam muaj feem yuav qis dua hauv kev dej xws li Catamarans , Semi-Submersible, platform thiab Drilling Rigs, tiv thaiv submarines thiab lwm cov nkoj uas ua rau sib chwv hauv qab dej.
Hydropneumatic Fenders tuaj yeem ua tau zoo 'tuned' los ntawm kev sib txawv thaum pib lub siab, dej rau huab cua piv thiab qhov hnyav taw rau kom haum qhov hull curvature thiab kev nkag siab ntawm cov submarines tshiab kawg.Qhov Hydropneumatic fender tuaj yeem ntsia rau ntawm feem ntau Quay cov qauv thiab tuaj hauv ntau qhov ntau thiab tsawg kom haum rau daim ntawv thov thiab muaj ntau yam ntawm cov hlab ntsha.
Florescence pneumatic Submarine Fender yog ib txwm siv rau Navy siv, peb muab lub submarine fender rau Asmeskas, Fabkis, Tim Nkij teb chaws thiab lwm cov nkoj nquam. Lawv hais tau zoo heev ntawm peb Cov Neeg Tawm Tsam Submarine.
Cov yam ntxwv ntawm Hydro Pneumatic Submarine Fender
1 | Kev ua tau zoo tuaj yeem kho los ntawm kev hloov cov huab cua-dej piv |
2 | Cov cua ntsawj cua xav tau tuaj yeem hloov kho |
3 | Tsawg hull pressures |
4 | Kho tus kheej kom haum thaum tidal hloov |
5 | Tsawg installation thiab txij nkawm tus nqi |
Cov ntaub ntawv loj
| Submarine fender Specification | |||||||
Qhov Coob | Kev ua haujlwm siab | Nkoj vojvoog | Kev ntsuas dej | Guaranteed Zog Txhab Zog (GEA) Cov Kev Nkag Siab Ua Haujlwm ntawm GEA (R) | |||
| Hull Siab (Sab Hauv Siab) ntawm GEA (P) Deflection ntawm GEA (D) | |||||||
| GEA | R | P | D | ||||
| hli x mm | kgf / cm² | hli | % | tf-m | tf | tf / m² | % |
| 1500 x 6100 | 0.5 | 3050 | 60 | 12. 12s | 56 | 14 14 | 51 |
| 1700 x 7200 | 0.5 | 4500 | 60 | 17 | 72 | 13. 13 | 49 |
| 2500 x 5500 | 0.5 | 4950 | 70 | 27. Muaj 27 leej | 102 | 15 15 | 40,5 |
| 2500 x 7700 | 0.5 | 5000 | 60 | 46 | 141 | 15 15 | 48,5 |
| 3300 x 6500 | 0.5 | 4950 | 70 | 50. | 143 | 15 15 | 40,5 |
| 3300 x 10600 | 0.5 | 6450 | 54,5 | 136 | 301 | 16 | 54 |
| 4500 x 9000 | 0.8 | 6750 | 85 | 23 | 75 | 11. 11 | 19,5 |
Lwm qhov ntau thiab tsawg kuj muaj avaible | |||||||
Thov
Feem ntau siv rau Navy lub nkoj hauv qab dej
Yuav tuaj yeem siv rau Catamarans
Dav siv rau Semi-submersible platform
Xaiv zoo rau Drilling rigs
Hais txog peb
Lub Hoobkas tsim nyob rau xyoo 1992, Qingdao Florescence Marine Supply Co., Ltd (Cov Neeg Koom Tes ntawm Qingdao Florescence Co., Ltd) tshwj xeeb hauv kev tsim cov roj hmab pneumatic fenders, ua npuas ncauj fenders, ntau lub nkoj dock roj hmab fenders, thiab nkoj pib & khaws cov roj hmab airbags.
FLORESCENCE cov khoom lag luam yog tsim, tsim, thiab ntsuas los ntawm ib tus ISO 9001: 2015 yuav tsum. Thiab txhua chav tsev ua haujlwm ruaj khov rau cov kev cai nruj ntawm cov neeg soj ntsuam nkoj xws li CCS, BV, RS, ABS, LR, thiab lwm yam.
Peb yog tus muab khoom siv ntau cov rog, xws li Bangladesh Navy, Fabkis Navy, Greece Navy, Thaib Navy, Ltalis Navy, Philippines Navy, thiab lwm yam.
FLORESCENCE suav hais tias peb cov neeg tau koom nrog pab pawg, kho lawv raws li cov neeg koom tes. Peb ib txwm ua ke nrog lawv ntawm txhua kauj ruam ntawm txoj kev, los ntawm nrhiav cov kev daws teeb meem ntawm fender siv thiab nkoj pib xa mus rau kev tsim khoom thiab nruab ua haujlwm rau ntawm qhov chaw. Peb cov kev nplua nuj tau ua rau peb lub koob npe nrov ua tus khub vam khom hauv ntau cov chaw nres nkoj thiab nkoj thoob ntiaj teb.
Cim npe nrov: submarine roj hmab fender, Tuam Tshoj, cov chaw muag khoom, chaw tsim khoom, Hoobkas, nqe
